connected data centers

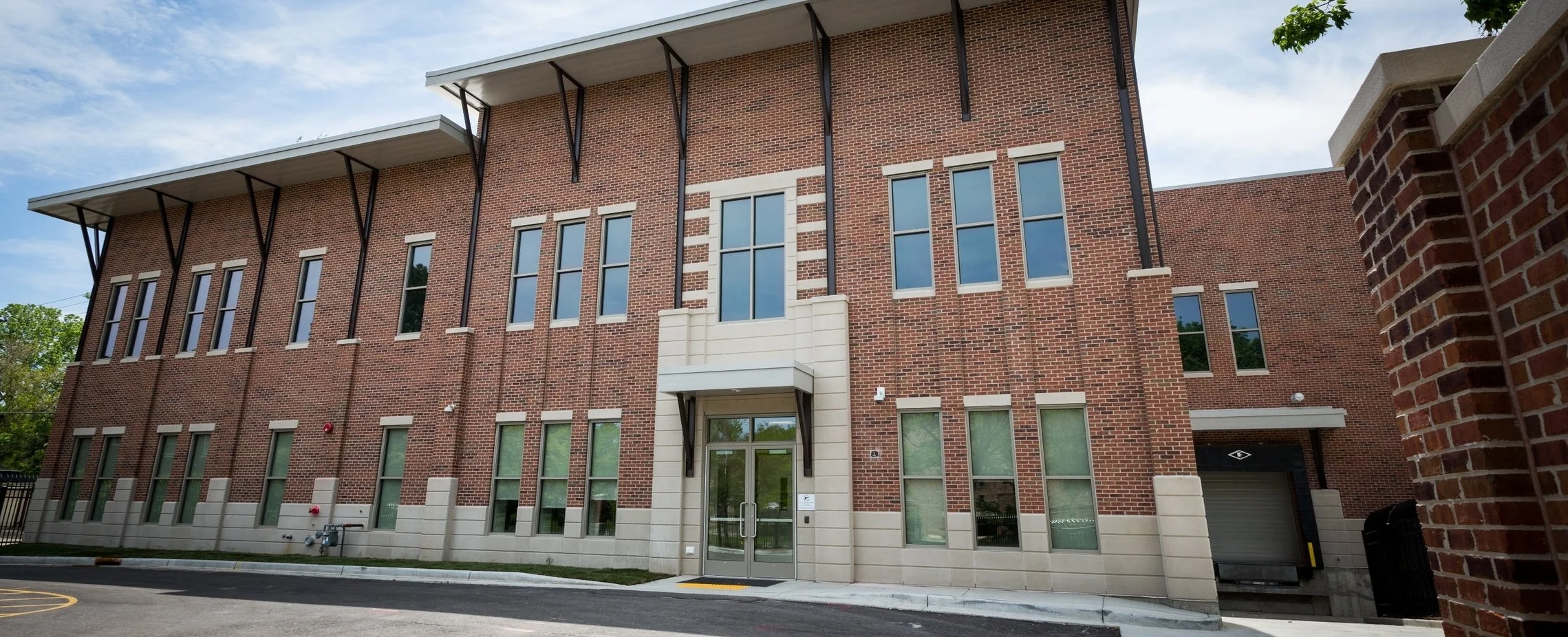

Data Holdings Data Center (4) medium.jpg

Milwaukee, Wi

BUILDING SIZE

  • Phase 1 – 50,000 sq. ft.
  • Phase 2 – 40,000 sq. ft.
  • Total 90,000 sq. ft
  • 2 story building

PARKING

  • 18 private parking stalls
  • Additional XXX stalls in adjacent lot

UTILITIES

  • (2) 26,400 volt WE Energies utility feeds from MV ATO will transfer load. Third feed available.
  • (1) water feeds into building
  • (1) WE Energies gas feed

ELEVATORS

  • (1) Freight Elevator @ 6,800 lbs. 5’ wide x 11’ deep

FLOOR LOADS

  • 150 to 450 psf / raised floors up to 1,000 psf

CLEAR HEIGHT

  • Varied clear heights 10’6” raised floor to 23’ non-raised floor

PROPERTY HIGHLIGHTS

  • 5,000 sq. ft. of 24” raised floor
  • 20,000 sq. ft. of 36” raised floor
  • 2.5 MW present IT load capacity
  • 7.5 MW planned IT load capacity
  • 10 MW ultimate load capacity
  • Extremely well-maintained with all maintenance records

    INFRASTRUCTURE

    • (2) 400-York chillers with Fisen Airside Economizers
    • Designed and expandable to (5) 400-York Chillers with Fisen Airside Economizers
    • (4) 750kW UPS (planned expansion to 12 x 750kW)
    • (2) 500kW UPS (planned expansion to 6 x 500kW)
    • (2) 2500 kW Cummins generators (planned expansion to 3 x 2500kW)
    • (2) Fiber Pops:  carriers include ATT, CenturyLink, Level 3, Midwest Fiber Networks, TW telecom, Time Warner, Charter, Spectrum, WIN (Wisconsin Independent Network) , Windstream, Ethoplex, Business only Broadband.
    • 12,000-gallon on-site fuel storage – 36 hours at 100% design Load
    • Switch gear, cameras, card readers, fire suppression/detection
    • 24x7x365 SOC Staffed (Security Operations Center)
    • JCI – Metasys Building Automation / Monitoring Systems
    • SSAE SOC 2 type 2 compliant.  HIPAA Compliant, PCI DSS v3.2 compliant

    MSP Exterior.jpg

    Minneapolis, MN

    BUILDING SIZE

    • 473,500 sf (w/o parking garage)

    PARKING

    • 214 private covered parking stalls

    UTILITIES

    • (2) 13,800 volt Xcel utility feeds from Elliot Park and 5th Street substations. MV ATO will transfer load. Third feed available.
    • (2) water feeds into building plus a well pump

    ELEVATORS

    • (3) Freight Elevators: 2 @ 15,000 lbs and 1 @ 10,000 lbs
    • (4) Passenger Elevators

    FLOOR LOADS

    • 150 to 450 psf / raised floors up to 1,000 psf

    CLEAR HEIGHT
    Varied clear heights 13’-5” to 17’

    PROPERTY HIGHLIGHTS

    • 120,317 sq ft of 24” raised floor
    • 33,874 sq ft of 6” raised floor
    • 110,447 sq ft existing office space
    • Full-service cafeteria with kitchen
    • 2.7 MW present IT load capacity
    • 5.4 MW planned IT load capacity
    • 10+ MW ultimate IT load capacity
    • Well-maintained with all maintenance records

      INFRASTRUCTURE

      • (4) 600-ton cooling towers
      • (2) chiller plants
      • (4) 600-ton Trane chillers
      • (1) 350-ton Trane chiller
      • (8) 720kW UPS (planned expansion to 16 x 720kW)
      • (5) 1500 kW Cummins generators
      • (4) 1535 kW Cat generators
      • (2) Fiber Pops:  carriers include Verizon, Century Link, AT&T - access to many others available
      • 60,000 gallon on-site fuel storage
      • Switch gear, cameras, card readers, fire suppression/detection
